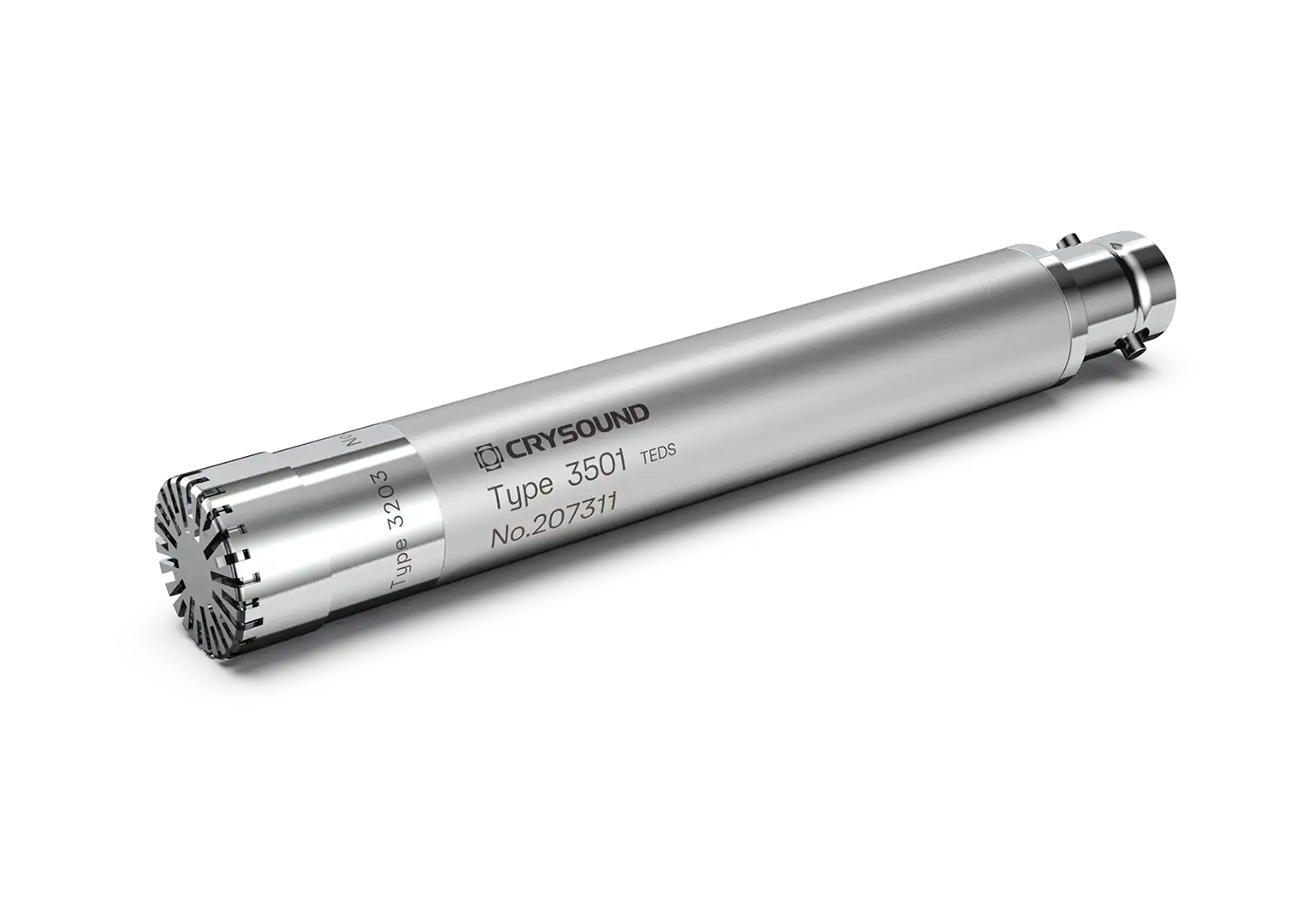

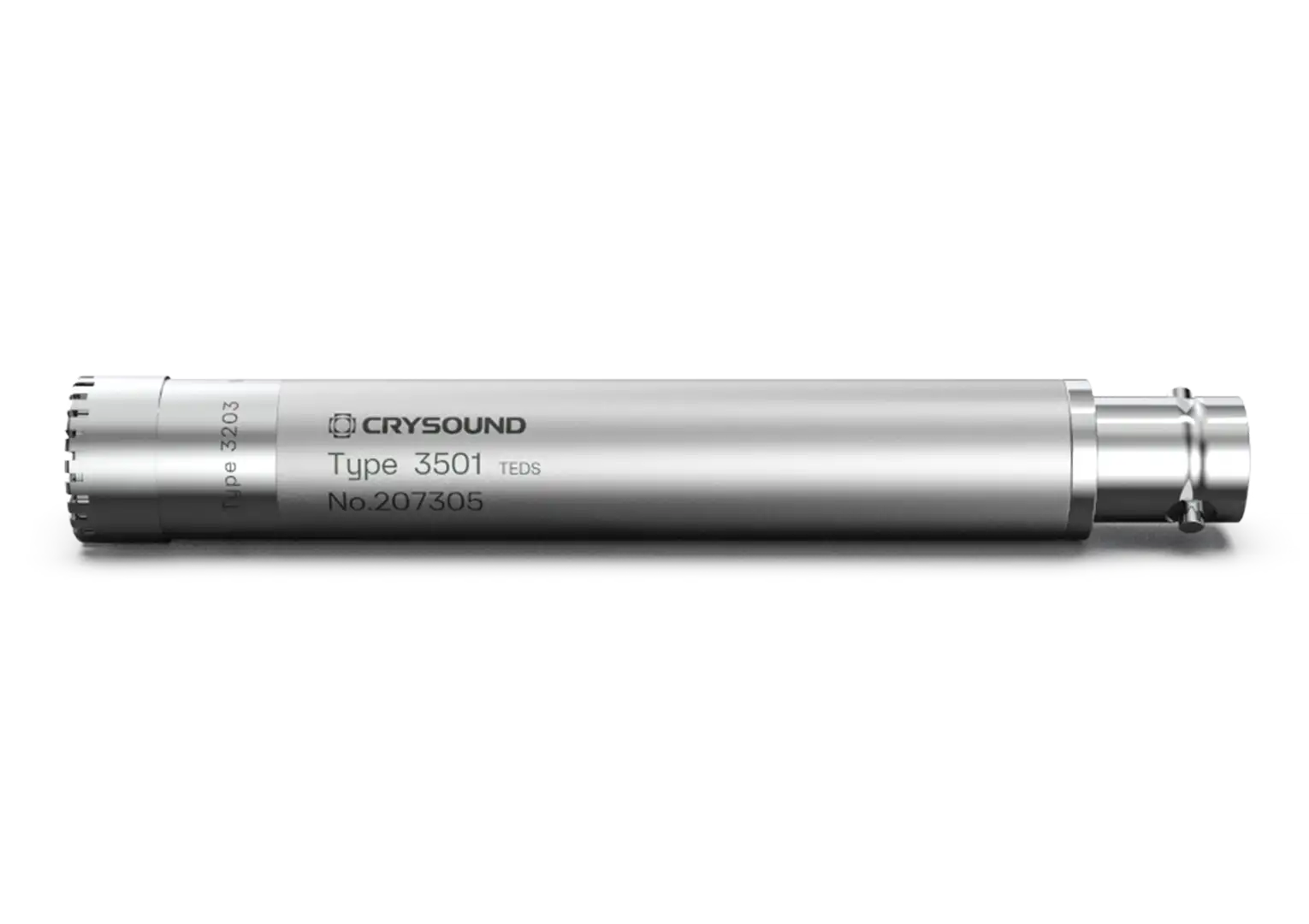

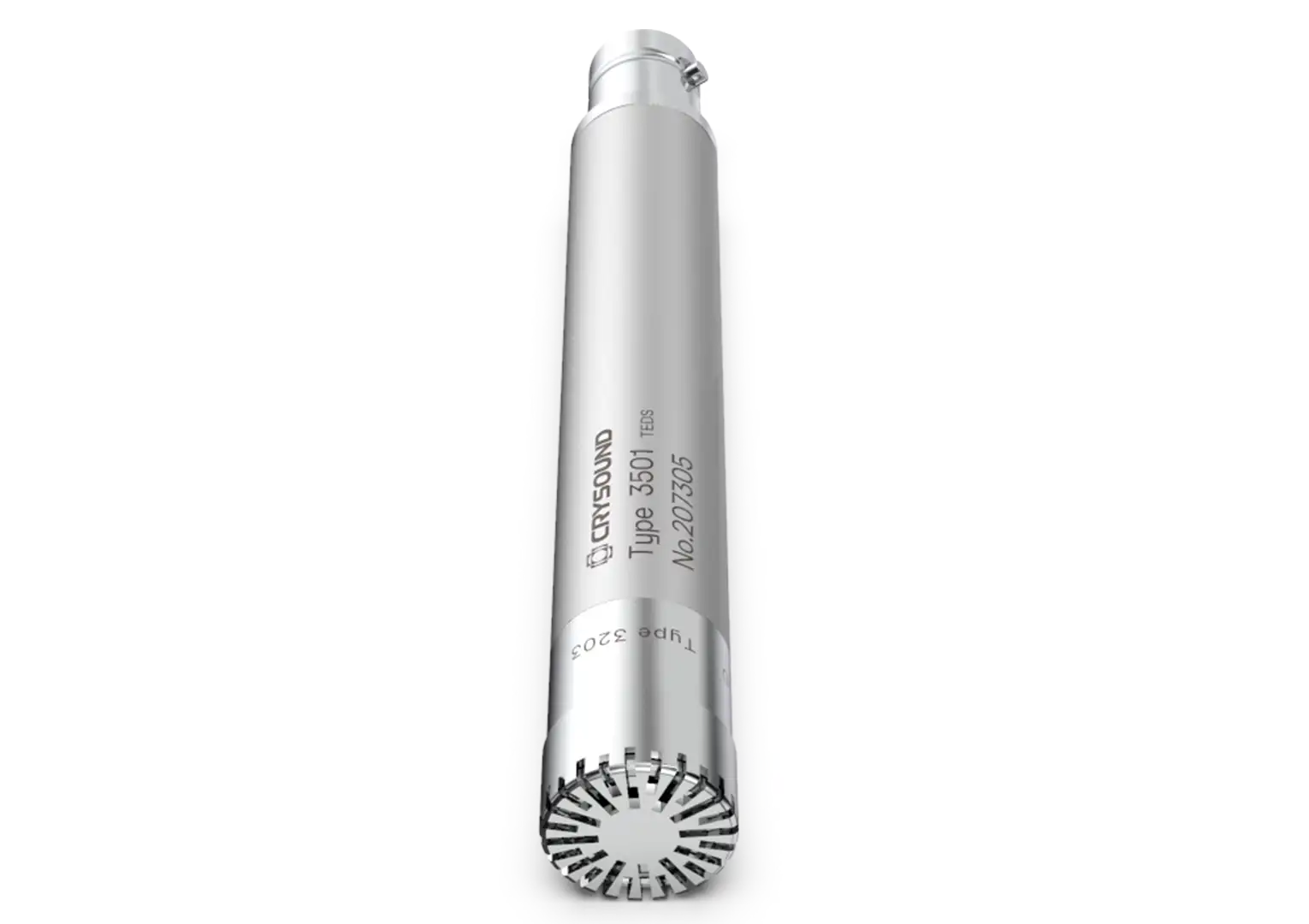

CRY3203-S01 Free-Field Microphone Set, 1/2″, 50mV/Pa
CRY3203-S01 is a 1/2-inch free-field prepolarized measurement microphone and preamplifier set widely used in acoustic testing environments, such as anechoic chambers and quiet rooms.
The unique design of CRY3203-S01 allows it to have a frequency response range that matches the auditory frequency range of the human ear, making it highly suitable for noise detection. Additionally, it is also widely applicable in various fields including electroacoustic measurements, audio measurements, and acoustical research.
Technical Specifications
Field Type
Free-field
Noominal Sensitivity
50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response
3.15Hz to 20kHz±2dB
Polarization Voltage
0V
Dynamic Range(re.20uPa)
15 dBA to 138 dB
Operating Temperature
-30 to +70℃ (-22 to +158℉)
Temperature Stability
0.012dB/℃(-10 to +50℃) 0.007dB/℉(+14 to +122/℉)
Static Pressure Stability
-0.01dB/kPa
Operating Humidity Range
0 to 90%RH no condensation
Humidity Stability
< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization Vent
Rear vented
IEC 61094-4 Type
WS2F
Output Impedance
< 50Ω
Maximum Output Voltage
> 10.0Vp
Current Source
IEPE (2mA to 20mA)
Typical Operating Current
4mA
Interface Type
BNC
Height with Grid
92mm (3.62")
Diameter with Grid
13.2mm (0.52")
Main Features
- High-sensitivity free-field microphone set
- TEDS microphone set
- General purpose
- Durable, reliable, and high-quality
Product Highlights
CRY3203-S01 Measurement Microphone Set Typical Frequency Response
The graph shows the frequency response curves for 0° incidence in a free-field environment and the frequency response curves obtained using the electrostatic excitation method.
